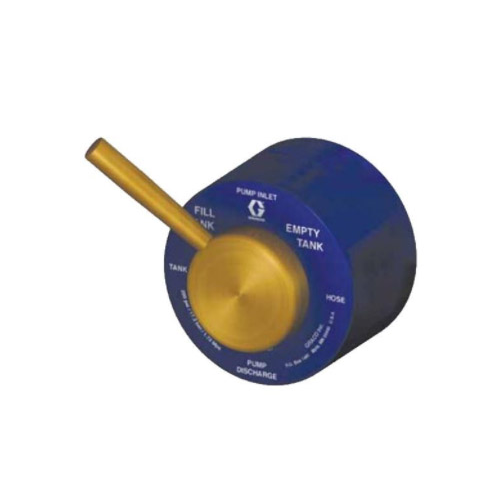

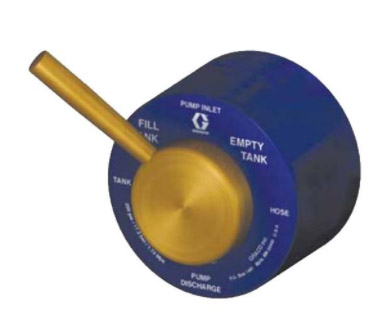

GRACO 4-way Evacuation Valve - 1 Inch

The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks.

FEATURES:

• Simplifies installation by eliminating need for multiple valves.
• Unrestricted flow – no pressure or volume loss.
• Two position tank fill and emptying control.
• Tapered, self seating valve spool for superior sealing performance.
• Four (4) 5/16 inch threaded bolt holes for flush mount installation.

Typical Applications:

• Filling and emptying waste oil containers on lube trucks.
• Transfer fluids from bulk supply tanks to operational day tanks.

Typical Fluids Handled:

• Petroleum and synthetic based oils.
• Fuels.
• Anti-freeze.
• Windshield wash fluid.

SPECIFICATIONS:

• Wetted parts: Brass (spool), aluminium (housing), fluoroelastomer (O-rings)
• Maximum working pressure: 200 psi (13.8 bar, 1.38 MPa)
• Dimensions: 4.75 in x 4.75 in (121 mm x 121 mm)
• Weight: 6.5 lbs (2.95 kg)
• Threads: 1” and 1 1/2” NPT (f)
• Mounting hole threads: 5/16 UNC (f)
