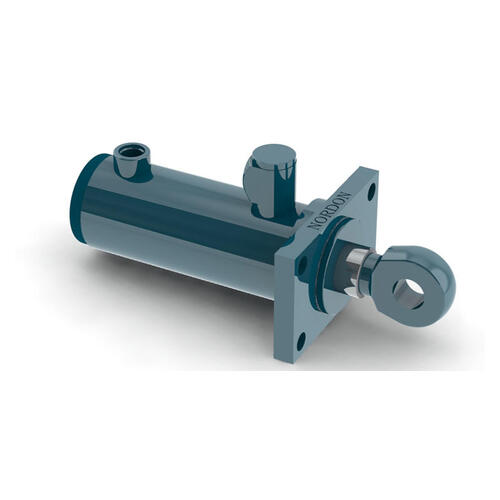

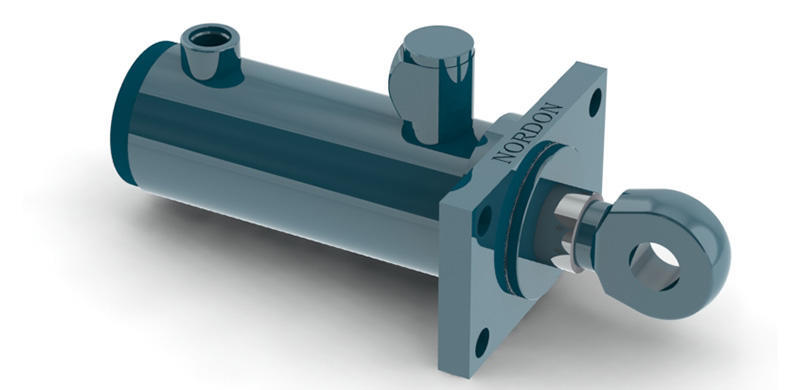

CYLINDER BEAM IN/OUT SIDELOADER - Nordon NI15SC1BU157SR10SC1S1- Obsolete when stock exhausted - Superseded by 420.006.00105

Nordon provides the industry leading NI Industrial range of cylinders - the first and still the only roundline cylinder manufactured in Australia. This range is the only industrial cylinder product that offers a complete range of standard mounting and accessories to provide clients with limitless range options. Featuring high 350 grade steel castings and machined steel mountings which are held in stock, the NI range offers designers a standard product to incorporate within their designs.

Bore: 1.5" to 12" (in 1/2" increments)

Stroke: 10mm to 7000mm

Working Pressure: 200 bar

Maximum Pressure: 300 bar

Speed: 0.25 mtr per sec

Safety Yeild: 3:1 at 200 bar

Gland: Internal thread

Mounts: Female clevis, pin eye, sphereical bearing, male lug, trunion, NFPA style rectangular flange and customer specified.
